Control Techniques Drives

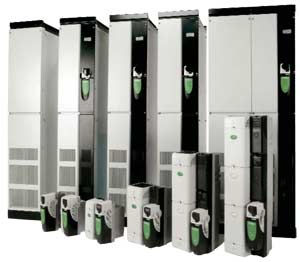

Control Techniques Drives UNIDRIVE SP are suitable for a variety of variable-speed drive applications

• Unidrive SP Panel Mounted – 0.75kW to 132kW
• Industry leading compact IP20 drive module
• Each model consist of rectifier, DC link and an inverter as a single unit

Commander SX

The Commander SX from 0.37kW to 7.5kW is an IP66 (NEMA 4X) protected drive that enables users to mount the drive directly next to the motor giving significant cabling, cabinet and installation savings.

• 0.37 to 4kW 3 phase 200VAC
• 0.75 to 7.5kW 3 phase 400VAC
• IP66 NEMA 4X enclosed drive

Commander SK

Commander SK AC Drive / VFD.

• Open loop vector control
• Speed or torque control

Commander SE

Commander SE inverter is a industrial drive suitable for a variety of variable-speed applications, especially pumps, fans, and conveyor systems. It can be configured to meet a variety of interface and Flux Current Control performance.

• 200V to 480V
• 1/3 HP to 50 HP

Mentor II

Mentor II DC drives are widely used in applications that require regeneration, precise speed control, dynamic performance, and constant torque over wide speed ranges.

• Microprocessor based Digital DC Drive
• 5.5 to 750 kW, 3 phase, 208 to 660 VAC
• Regenerative and non-regenerative models

Puma SM, Cheetah SM, Lynx SM & 4Q2

Control Techniques Drives low cost DC motor speed controllers are designed for the efficient, cost effective, speed control of conventional shunt wound and permanent magnet dc motors.

• 0.18 to 7.5kW
• All models dual input rated (see table)
• Operates in speed and torque control modes

MiniAx

MiniAx is an ultra compact and robust ac brushless servo module designed to meet a wide range of automation applications.

• Trapezoidal 3 phase brushless servo
• Rugged, compact footprint
• Designed for chassis mounting (IP00)

Epsilon

Epsilon Series is the most compact digital servo drive in the Control Techniques range.

• 90 to 264 VAC 1Ø input power
• Up to 6Nm continuous torque
• Drive options: (in 2,3 or 5 Amp)

M’AX

M’Ax with SLM technology has changed all that. M’Ax redefines totally what a user can and should expect from a servo system, in terms of installation costs, set-up times, axis performance and dependability. AC Servo Drive 1Nm to 20 Nm

• Servo specification
  – Compact design
  – 380 to 480V+/-10%
  – From 3.5 to 12.5A, 200% overload
  – Only 62mm wide

MultiAx with SLM technology has changed all that. MultiAx redefines totally what a user can and should expect from a servo system, in terms of installation costs, set-up times, axis performance and dependability. AC Servo Drive 1Nm to 20 Nm

• Digital clarity with (2.5Mbaud, 4 wire system)
• High resolution feedback 8.3M counts per revolution)
• Lower cabling requirements - 4 core cable
• Advanced SinCos encoders as standard
• SLM Motion Controller compatible

• MultiAx is three axis in one servo
