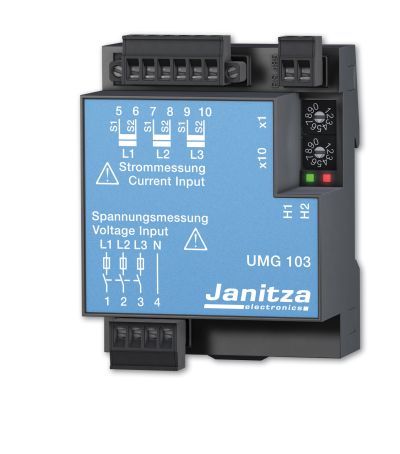

Janitza UMG103 Din Rail Power Meter

Product News Thursday, November 19, 2009: Harmonious Technical

Applications
Universal measuring devices of the UMG 103 product family are mainly designed for use in low voltage distribution systems.

The UMG 103 is a measuring instrument with an effective energy class of 0.5S.

In addition to a large quantity of electrical measurement values, the UMG 103 offers a multitude of additional functions such as the measurement of harmonics, the storage of minimum and maximum values, operating hour meter, bi-metallic strip function and password protection. The interface and field bus capabilities (Modbus) enable the communication of measurement data and incorporation into a comprehensive energy management system.

Areas of application
¦For measuring and checking electrical parameters in energy distribution units
¦Cost centre data collection
¦Limit value monitoring, measurement value generator for building management systems or PLC
¦Monitoring harmonics
Main features
¦Measurement in TN and TT networks

¦3 voltage measurement inputs (300V CATIII), 3 current measurement inputs

¦Continuous scanning of the voltage and current measurement inputs

¦High measurement accuracy, effective energy class 0.5; U/I, 0.2%

¦Harmonic analysis up to a 25th

¦Including GridVis software

¦RS 485 (Modbus RTU, slave)

¦Mounting on 35mm DIN rail

¦Suitable for integration in installation distribution panels




http://janitza-net.de/fileadmin/files/Janitza-Maincatalogue_2009.pdf
