Compact New 12 Volt DC Gearmotor Develops 46 LB-IN. Torque at 100 RPM
Product News Wednesday, December 2, 2009: Midwest Motion Products

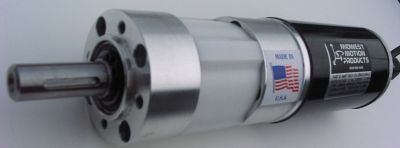

Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear Motor, the Model No. MMP-TM55-12V GPk52-046-LS. Accepting any 12 Volt DC source, including battery power, this robust Gear Motor measures just 2.2” (max) Diameter, by 7.2” long, and has a keyed output shaft of 0.500” diameter by 1.5” long. Easy mounting is accomplished with 4 “face mount” M5 threaded holes, equally spaced on a 40mm Dia. B.C. The output of this reversible gearmotor is rated for 46 IN LBS continuous torque, at 100 RPM, and 89 IN LBS Peak. Despite its compact size, and weight of approximately 3 pounds, it’s an efficient design, requiring just 7.2 Amps at 12 Volts DC to generate its Full Load Torque. That translates into long life battery charge, very LOW NOISE operation, and lower cost drive electronics. Motor windings for 24v, 36v, 48v, 60v & 90 Volts are available.
This unique design is rated at an “IP-54” Ingress Protection level for operation in harsh environments. Variable Speed can be accomplished with our fully compatible Speed Controls, Model MMP 25A-12V, or MMP 20A-12V-RSP.
Typical options available from the company include Servo Motors with integral Optical Encoders, Failsafe Brakes, Analog Tachometers, and Planetary Gearheads, with standard ratios ranging from 3:1 to 2653:1, and standard or low backlash precision gearing available. Motor Winding Options include 24V, 36V, 48V, 60V and 90 Volts DC.
The company offers a variety of standard ancillary equipment including DC power supplies, DC Servomotors, PWM Servo Amplifiers, Motor Speed Controls, Linear Actuators and a wide variety of DC gear-motors. Custom Motor Shaft and mounting configurations are also available. Typical applications include Battery Operated Robots & E.V. drives, Medical, Mobility / Accessibility products, Robotics & Automation including (Military) Unmanned Guided Vehicles, Solar Tracking Equipment, Actuators, Packaging & Labeling Machines, Metalworking Machines, and many other applications requiring precise motion control.
