VEF2 Variable Earth Leakage Protection Relay from FDB Electrical

Product News Friday, September 26, 2014: FDB Electrical Ltd

The VEF2 from FDB Electrical forms part of their extensive range of low cost, high specification RCDs which are user adjustable to a wide range of trip levels and response times for precise system protection.

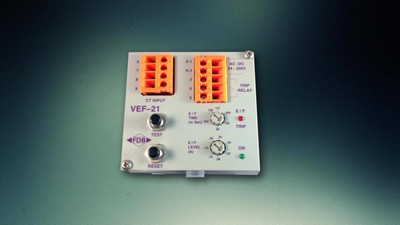

The VEF2 is designed for high current applications where it can be connected to any of the FDB wide range of external C.T.’s. It is housed in a compact Din-rail mounting enclosure complete with integral test, reset buttons and LED status indication.

The fully encapsulated construction of the VEF2 provides excellent temperature stability, together with high immunity against shock and vibration. It is housed in a flame retardant halogen-free polycarbonate enclosure.

The VEF2 features fail-safe operation with manual reset after fault trip, auto reset after power failure and trip status latched until reset (with power supply on). A Non-Failsafe version is available to special order for use in applications where shunt tripping of primary/supply breakers makes failsafe impractical.

The VEF2 is powered from an isolated ac/dc power supply from 24-240V so allowing external C.T. earthing if required. It also features, via terminal connection, a very wide settable current range, from 0.02 Amps to 30 Amps over 3 ranges. The VEF2 is designed to react to alternating current only and reject stray DC signals. Accuracy is maintained from 5Hz to 800Hz thus making the unit suitable for application on variable frequency drives.

The VEF2 can be used on solid, medium or high resistant grounded installations and by using the FDB Electrical recommended artificial ground.

Further information on FDB products and services may be found at: www.fdb.uk.com and at www.fdbonline.co.uk. Find the latest information and news on the FDB blog – www.fdbnews.co.uk.
