New Positioning Stage from Lintech features 7,780 lbs (3530 kg) Load Capacity
Product News Thursday, September 10, 2015: Electromate Industrial Sales Ltd.

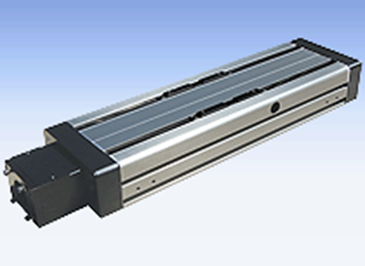

Now available from LinTech is the totally enclosed 610 series low-cost positioning stage. This large load capacity totally enclosed positioning stage is available in stroke lengths from 6 to 60 in (150 to 1520 mm) and ships in ~2 weeks.
The Lintech 610 series screw driven linear enclosed slides are designed to maximize performance while minimizing physical size and cost. These linear positioning systems use a low friction, preloaded, recirculating linear ball bearing system, which ride on precision ground linear rail guides. The linear rails are mounted to an extruded aluminum base, which offers a rigid support over the entire travel of the table’s carriage. The load is mounted to a precision machined aluminum carriage, which has threaded stainless steel inserts for high strength and wear life. There are 38 different acme & ball screw options that offer high efficiencies and long life at an economical price. These linear tables are designed to allow for numerous options. They include EOT & Home switches, linear & rotary encoders, power-off electric brakes, motor wrap packages, and versatile mounting brackets for multiple axis applications.
Features include:
· Self lube linear bearings
· Enclosed IP-30 rated system
