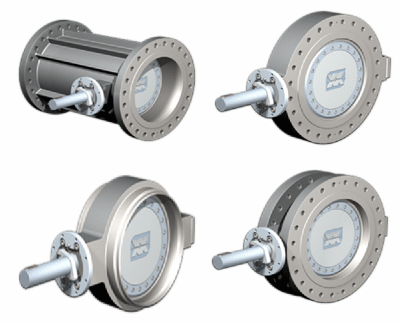

QUADAX QUADRUPLE  ( 4 ) OFF SET BUTTERFLY VALVES

QUADAX QUADRUPLE ( 4 ) OFF SET BUTTERFLY VALVES

Product News Friday, September 3, 2010: Atelier S.A.

Since 1960 Müller CO-AX have been involved with the manufacturing of coaxial valves used in the machine tool and gas industry as well as many other industrial applications. Now with the new Quadax 4 off set butterfly valve series, the  group is expanding their range of products.

ZERO LEAKAGE
No matter what the Temperature in Both Directions.

  • HIGH PRESSURE
  • EXTREME TEMPERATURE


Temperatures ranging from –270°C to +800°C
Sizes from 80 mm to 1500 mm.
Pressure Ranges: 0-16 / 0- 40 / 0- 64 / 0-160 bar.  Higher pressures on request.
When dealing with the control, regulation and monitoring of very different media, a reliable partner is required.
Our innovations and know-how make CO-AX this reliable partner having developed the original Coaxial Valves.

APPLICATIONS

  • LNG and LPG systems
  • Power Generation
  • Mining
  • Pulp & Paper
  • Refining/Petrochemical
  • Technical Gases
  • Cryogenic
  • Others
What differentiates the CO-AX Quadax valves from their competitors! A quadruple (four offset) design and a New Manufacturing Technology. Quadax meets the highest tightness requirements, even under extreme temperature conditions, ranging from -270 °C to +800 °C.  New Disc Design / Tight in both directions / Pure metal seals available. No Wear / Friction Free / Lowest Shaft Deflection /  Dead Leg  Area minimized. Very Low Torque /  Higher KV / CV Value / Fire Safe in Both Directions.

FULL CERTIFICATION
