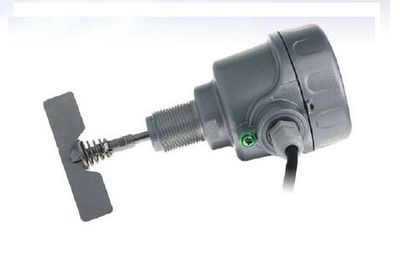

SE250
Product News Friday, October 8, 2010: Temperature Controls (Pty) Ltd.
The Transmission shaft and clutch of the unit connect together. During normal operation, (no materials exist) the motor rotates the paddle at 1 RPM. When this paddle rotation is impeded by material, surrounding the paddle, the motor will stall and cause the Micro-switch to change statue (indicating an alarm or control).
Product Features:
- folded paddle, no dismantling of the paddle during installation.
- Aluminium housing with sturdy and durable features.
- Hermetically seal, suitable for outdoor application.
- Unique sealing ring design, it can prevent the dust frompermeating into the housing body along with the shaft.
- The torque force is adjustable and reliable.
- Simple design, easy to install.
- If the paddle bears overload, the motor will slide automatically to prevent the inside mechanism from being damaged.
- The inside mechanisms are easily tore down for checking, maintenance and replacement. It is not necessary to remove the complete set from the tank.
Applications:
Suitable for chemical, plastic, pharmaceuticals, feed, cement, fertilizer, food and processing Industries.
Product Specifications:
- Power Supply: (A) 110V AC (B) 220V AC (C) 240V AC 50/60Hz (D) 24V DC
- Consumption: 1.5W(ac); 3W(24V DC)
- Contact Capacity: 3A/250V AC
- Paddle Rotary Speed: 1RPM
- Operation Temperature: -20 ~ 70°C
- Measuring Torque: 25~155 g-cm
- Specific Gravity: 0.3g/cm³
- Standard Connection: 1"PF, 3/4" PF Screw, JIS 3/4" 5kg/cm² (flange)
- PVC cable entry 22 AWG, 300mm length
