Ideally suited for applications such as packaging and labeling, automated test and measurement, automated assembly and life sciences, StepSERVO™ motorsfrom Applied Motion Products provide the next evolution integrated step motor technology. Starting with a proven integrated motor design, we add a high-resolution incremental encoder and closed-loop servo firmware to create a motor that offers the best step motor performance available today. StepSERVO™ motors offer the same high-torque-at-low-speed and excellent holding torque characteristics of open loop stepping motors with the advantages of true closed-loop control. These advantages include the ability to create peak torques from the motor up to 50% higher than the normal torque range of the same step motor running open loop. Closed-loop also means the motor only draws current when it needs it, so step motors now run cooler than ever before.  StepSERVO™ motors feature:

·       NEMA frame size 17, 23 and 24. StepSERVO motors utilize 5000 line incremental encoders (20,000 counts/rev)

·       NEMA frame size 11. StepSERVO motors utilize 1024 line incremental encoders (4,096 counts/rev)

·       Closed-loop servo control using high torque step motors

·       High acceleration for faster machine cycles and greater productivity

·       Energy efficient, cool running

·       All-in-one compact solution

·       IP65 versions for wet and dusty environments

·       Stand-alone operation (stored Q programming)

·       EtherNet/IP industrial networking option

·       CANopen fieldbus option

·       Modbus RTU option for easy PLC/HMI connection

Click on the following link to view a 30minute YouTube Video on the StepSERVO™ integrated stepper motor.

There are three types of StepSERVO™ to choose from:

SSM integrated steppers feature:

·       NEMA 23 frame size motors

·       Ethernet (RJ-45) port for programming

·       EtherNet/IP industrial networking standard

·       Three motor lengths (stack lengths) available to provide the highest amount of torque in the shortest motor possible

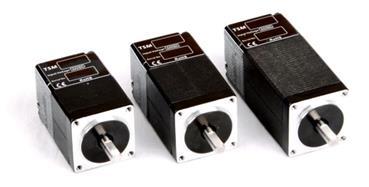

TSM integrated steppers feature:

·       NEMA 11 (New!), NEMA 17 and NEMA 23 frame size motors

·       RS-232 or RS-485 port for programming and streaming commands

·       Control options including CANopen fieldbus control, digital step & direction control, analog velocity mode, streaming commands and stand-alone operation using stored Q programs.

·       Three motor lengths available in each frame size to provide the highest amount of torque for each length

TXM integrated steppers feature:

·       IP65 rated for wet and dusty environments

·       NEMA 24 frame size motors

·       RS-232, RS-485 or Ethernet port (M12) for programming, streaming commands and fieldbus/networking

·       Control options include CANopen fieldbus control, EtherNet/IP industrial networking, digital step & direction control, analog velocity mode, streaming commands and stand-alone operation using stored Q programs.

·       Two motor lengths available to provide both a lower torque and a higher torque option depending on application requirements
