New IP69K Food Grade HMI Solution from Exor

Product News Monday, April 11, 2016: Electromate Industrial Sales Ltd.

·       NO MORE! Secondary Cleaning Procedures



·       LESS CHANCE for Food & Beverage Product Contamination due to Manual Cleaning!



·       316 Stainless Steel Bezel



·       IP69K



·       Harsh Chemical Resistant



·       PCAP "Glove Compatible" Touchscreen



·       Food Compatible gasket and sealing compliant with FDA 21 CFR 177.2006

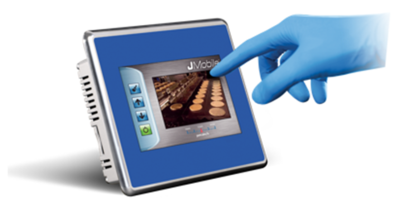

The eTOP4FOOD has been designed and proven to solve the industry wide problem of HMI failures and less effective alternative HMI cleaning procedures.  With the eTOP4FOOD no longer is the HMI required to be shielded from high temperature, high pressure cleaning.  The IP69K PCAP Touch "Glove Compatible" HMI has a 316 SS bezel and Polyester front foil resistant to the high pressure, high temperature, harsh chemical wash-down and is designed to thrive!  No more covering the HMI panel during equipment cleaning!  No more manual, less effective secondary cleaning procedures!  And most certainly, no more HMI failures!  Reduced labor, and more importantly reduced risk of product contamination from manual, secondary cleaning procedures because the HMI just isn't tough enough!  eTOP4FOOD solves real problems!  Features include:



·       Stainless steel bezel 316/1.440l



·       IP69K



·       Food-compatible gasket



·       Food standard sealing compliant with FDA 21 CFR 177.2006



·       PCAP touchscreen, can be operated with gloves for food areas



·       7“ TFT display 800x480 64K colors



·       High-performance 1 GHz ARM CPU with 256 MB Flash



·       Designed according to DIN EN1672-2



·       Designed according to the EHEDG Guideline



·       Extended temperature range (-20°C +60°C)



·       2 Host interface v.2.0, SD Card Slot, 2 Ethernet port with integrated Switch



·       Serial port RS-232, RS-485, RS-422, MPI Software configurable



·       Ready for integrated CODESYS PLC and I/O



Click on the link below to view the specification on Exor’s IP69K Food Grade HMI-



http://www.electromate.com/assets/catalog-library/pdfs/exor-electronics/Exor_eTOP507MFB_Specsheet.pdf
