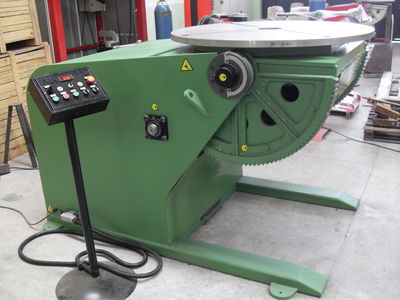

Britannia 5000kg Welding Positioner. For Sale or Hire/Rental
Product News Wednesday, December 1, 2010: Westermans International Limited
New Britannia 5000kg Welding Positioner. Made and Designed in Europe
This quality made welding positioner meets all the EU standards with full certification.
You can Buy or Hire this machine
Specification:
Power Tilt and variable speed Rotation with controller
Rated Load Capacity 5000 kgs
Rated Centre of Gravity (mm) 150
Rated Eccentricity (mm) 150
Rated Load Table Horizontal WI kgs 7500
Rated Tilt Torque (kg M) 1705
Rated Rotation Torque (kg M) 750
Distance from Table to Pivot (mm) 191
Rotation Speed (Thyristor) (rpm) 0,02-0,84
Tilt Speed (seconds per 135o) 142 seconds
Table Diameter (mm) 1200
Table Slots - Bolt Size 4M-18
Rotation Motor (kw) 2,2
Tilt Motor (kw) 1,1
Earthing (Amperes) 500 / Supply Voltage 400 +/- 10%
Overall Length (Horizontal) (mm) 2130
Overall Width (mm) 1365
Overall Height Table Level (mm) 1362
Stock No: 12361
To see more photographs and a video click welding positioner which will take you directly to the product on www.westermans.com
Available from Stock inL Leicester, UK
