High-Lift Box/Container Tipper

Product News Friday, July 22, 2011: Flexicon Africa (Pty) Ltd

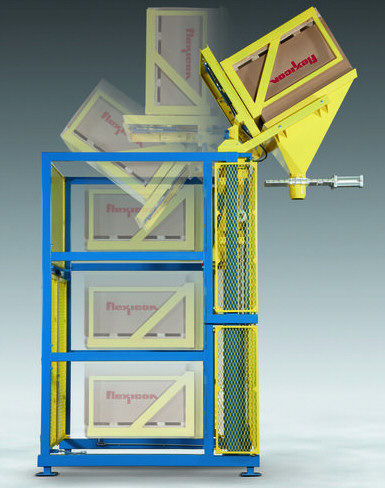

Normal 0 false false false MicrosoftInternetExplorer4 /* Style Definitions */ table.MsoNormalTable{mso-style-name:"Table Normal";mso-tstyle-rowband-size:0;mso-tstyle-colband-size:0;mso-style-noshow:yes;mso-style-parent:"";mso-padding-alt:0in 5.4pt 0in 5.4pt;mso-para-margin:0in;mso-para-margin-bottom:.0001pt;mso-pagination:widow-orphan;font-size:10.0pt;font-family:"Times New Roman";mso-ansi-language:#0400;mso-fareast-language:#0400;mso-bidi-language:#0400;} A new TIP-TITE™ High-Lift Box/Container Tipper from Flexicon discharges dust-free into vessels 183 to 305 cm above the plant floor.

The tipper allows boxes and other containers to be loaded at floor level, sealed against a discharge hood, elevated and tipped, mating the hood outlet to a gasketted inlet port fitted to any receiving vessel.
The unit accommodates boxes from 915 mm to 1220 mm on a side and 990 mm to 1117 mm overall height.

The container platform is raised by a single hydraulic cylinder, creating a dust-tight seal between the top edge of the container and the underside of the discharge hood. A second hydraulic cylinder raises the platform-hood assembly vertically, before tipping it to a motion-dampened stop at 60 degrees beyond horizontal, causing the vertically-oriented hood outlet to mate with the receiving vessel's horizontally-oriented inlet port.

A pneumatic or manual slide gate valve prevents material flow until the discharge cone has been properly seated, and allows discharging at controlled rates.

The tipper is constructed of carbon steel with stainless material contact surfaces, and is also available in all-carbon-steel construction with durable industrial coatings, or all-stainless construction finished to food, pharmaceutical or industrial standards.

Optional receiving hoppers configured with the company's mechanical or pneumatic conveyors are available to transport discharged material to any plant location.

The company also manufactures drum tippers, drum fillers, bulk bag dischargers, bulk bag conditioners, bulk bag fillers, bag dump stations, weigh batching and blending systems, and engineered plant-wide bulk handling systems with automated controls.

For information contact Flexicon Africa (Pty) Ltd., PO Box 10450, Linton Grange, Port Elizabeth 6015, South Africa, +27 (0)41 453 1871, sales@flexicon.co.za, www.flexicon.co.za.
