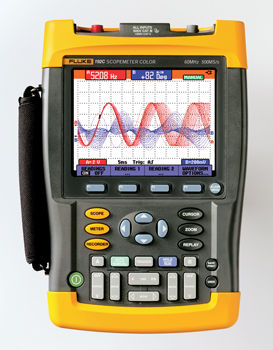

Scope Meter 190 series

Product News Monday, December 5, 2011: Vepac Electronics

For more demanding applications, the ScopeMeter 190C Series high performance oscilloscopes offer specifications usually found on top-end bench instruments. With up to 200 MHz bandwidth, 2.5 GS/s real-time sampling and a deep memory of 27500 points per input they’re ideal for

engineers who need the full capabilities of a high performance oscilloscope in a handheld, battery powered instrument.

•Dual input –60, 100 or 200 MHz models

•Up to 2.5 GS/s real time sampling per input

•Bus Health Test capability for industrial buses, including Profi, Foundation, ModBus and many more (225C and 215C)

•High resolution color display

•High waveform resolution of max. 3000 datapoints per channel

•Digital Persistence for analyzing complex dynamic waveforms like on an analog scope

•Fast display update rate (> 100/sec) for seeing dynamic behavior instantaneously

•Connect&View™ automatic triggering, a full range of manual triggering modes plus external triggering.

•Automatic capture and replay of 100 screens

•27500 points per input record length using ScopeRecord mode

•Up to 1000 V independently floating isolated inputs

•Waveform reference for visual comparisons and automatic pass/fail testing of waveforms

•Vpwm function for motor drive and frequency inverter applications.

• Waveform mathematics: Add, Subtract and Multiply

• Frequency Spectrum Analysis using FFT

• X-vs-Y mode (Lissajous display) for study of signal relationships

• Cursors, zoom and real-time clock

• 30 automatic waveform measurements

• Over 3.5 hours rechargeable Ni-MH battery pack

• Includes a 5000 count true-RMS multimeter and a TrendPlot™ paperless recorder

ScopeMeter for medical imaging and

video test applications

For tests on such systems, an optional configuration is available. Please check the Fluke website for further details.

Bus Health Test (225C and 215C)

Bus Health Test analyses the electrical signals on an industrial bus or network and gives a clear “Good”, “Weak” or “Bad” validation mark for each of the relevant parameters, presented next to the actual measurement value. The Fluke 225C and 215C can make the signal quality validation as soon as electrical signals are passed along the network, without looking at the data content. They find errors like improper cable con

Automatic capture and replay

of 100 screens

Scope users know how frustrating it is to see a one time anomaly flash by, never to be seen again. Not with the ScopeMeter 190C Series! Now you can look back in time with a touch of the replay button. In normal use, the instrument continuously memorizes the last 100 screens. Each time a new screen is acquired, the oldest is discarded. At any moment you can “freeze” the last 100 screens and scroll through pictureby- picture or replay as a ‘live’ animation. Cursors can be used for further analysis. You can even use the advanced trigger capabilities to capture up to 100 specific events. Two sets of 100 captured screens with individual time stamps can be stored for later recall or download to a PC.nections, bad contacts, incorrect grounding and missing or superfluous terminators.
