24 Volt DC Gearmotor
Product News Monday, July 23, 2007: Midwest Motion Products
New 24 Volt DC Gearmotor Develops 124 IN. LB. Torque at 37 RPM

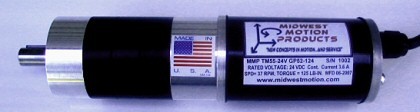

Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new DC Gear Motor, the Model No. MMP TM55-24V GP52-124. Accepting any 24 Volt DC source, including battery power, this robust Gear Motor measures just 2.14” in Diameter, by 7.7” long, and has a keyed output shaft of 12mm diameter by 25mm long. Easy mounting is accomplished with 4 “face mount” M5 threaded holes, equally spaced on a 40mm Dia. B.C.
The output of this reversible gearmotor is rated for 124 IN LBS continuous torque, at 37 RPM, and 444 IN LBS Peak. Despite its compact size, and weight of less than 4 pounds, it’s an efficient design, requiring just 3.5 Amps at 24 Volts DC to generate its Full Load Torque. That translates into long life battery charge, quiet operation, and lower cost drive electronics. Motor windings for 12, 36, 48, 60 & 90 Volt Inputs are also available.
This unique design is rated at an “IP 54” protection level for operation in harsh environments. Variable Speed accomplished with our fully compatible Speed Control, Model MMP 25A-24V, or MMP 20A-24V-RSP.
