New 12 Volt DC Right Angled Output Gearmotor Develops 86 IN. LB. Torque at 19 RPM
Product News Monday, May 11, 2009: Midwest Motion Products

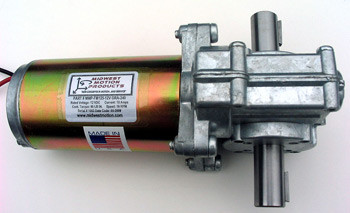

Midwest Motion Products of Watertown, Minnesota, is pleased to announce the release of a new Right Angled DC Gear Motor, the Model No. MMP-FM125-12V GRA-240. Accepting any 12 Volt DC source, including battery power, this robust Gear Motor measures just 2.5” (motor) Diameter, featuring a 3.2” by 2.2” Wide Gearbox, with an overall length of 8.15 Inches. The unit is equipped with a ¾” diameter by 1.5” long keyed DUAL output shaft that exits both sides of the Gearbox. Hollow Shaft designs are also available. Easy mounting is accomplished with 4 ea. ¼” x 20 threaded holes, equally spaced 1.5” apart, on both sides of the Gearbox.
The output of this reversible gearmotor is rated for 86 IN LBS continuous torque, at 19 RPM, and 100 IN LBS Peak. Despite its compact size, and weight of approximately 6 pounds, it’s an efficient design, requiring 10 Amps at 12 Volts DC to generate its Full Load Torque. That translates into long life battery charge, low noise operation, and lower cost drive electronics. Motor windings for 24 & 90 Volts DC are available. This unique design is rated at an “IP 52” protection level for operation in harsh environments. Variable Speed can be accomplished with our fully compatible Speed Controls, Model MMP 25A-12V, or MMP 20A-12V-RSP.
Typical options available from the company include Servo Motors with integral Optical Encoders, Failsafe Brakes, Analog Tachometers, and Planetary Gearheads, with standard ratios ranging from 3:1 to 2653:1, and standard or low backlash precision gearing available. Motor Winding Options include 12V, 24V, 36V, 48V, 60V and 90 Volts DC.
The company offers a variety of standard ancillary equipment including DC power supplies, DC Servomotors, PWM Servo Amplifiers, Motor Speed Controls, Linear Actuators and a wide variety of DC gear-motors. Custom Motor Shaft and mounting configurations are also available. Typical applications include Battery Operated Motors & E.V. drives, Medical, Mobility / Accessibility products, Robotics & Automation including (Military) Unmanned Guided Vehicles, Rotational Molding Equipment , Actuators, Packaging & Labeling Machines, Metalworking Machines, and many other applications requiring powerful motion control.
